Cable Trunking System
Manufacured to:
BS 4678 Part 1 Class 1 to Class 3
BS EN 50085 / IEC 61084
hot dip galvanized (HDG) to BS 729/BS EN ISO 1461
stainless steel 304/316L (SS304 /SS316L)
high performance plastic coat(LLDPE)
epoxy/polyester powder(EP/PP)
CABLE TRUNKING

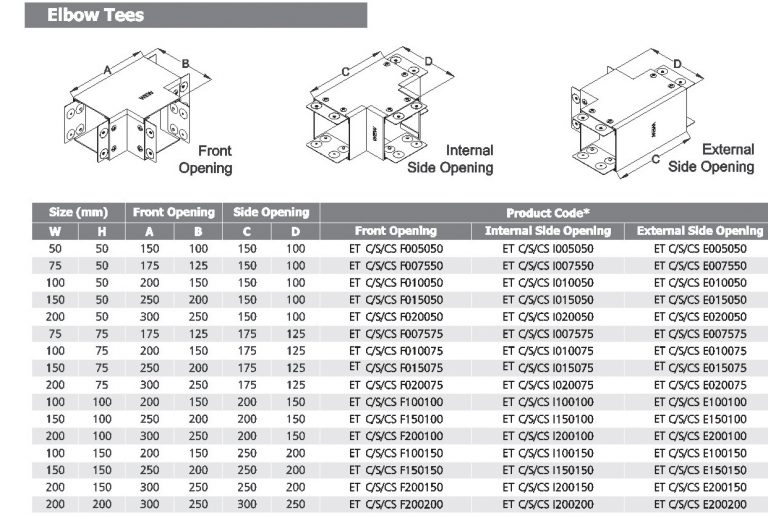

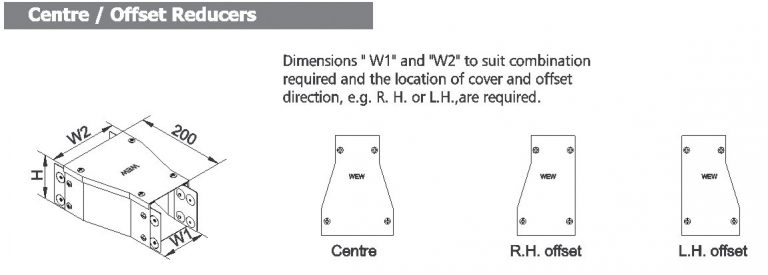

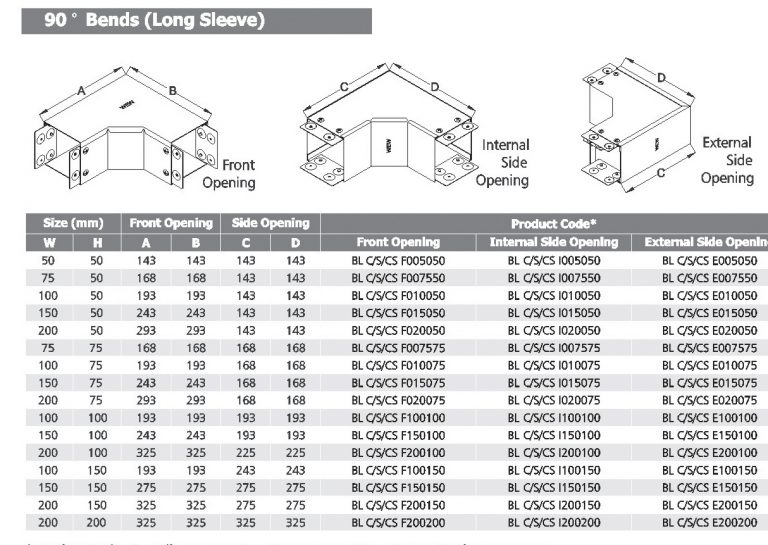

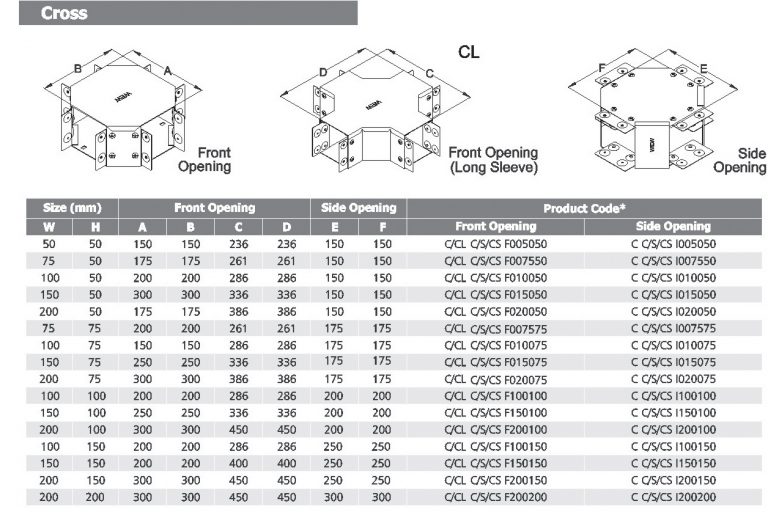

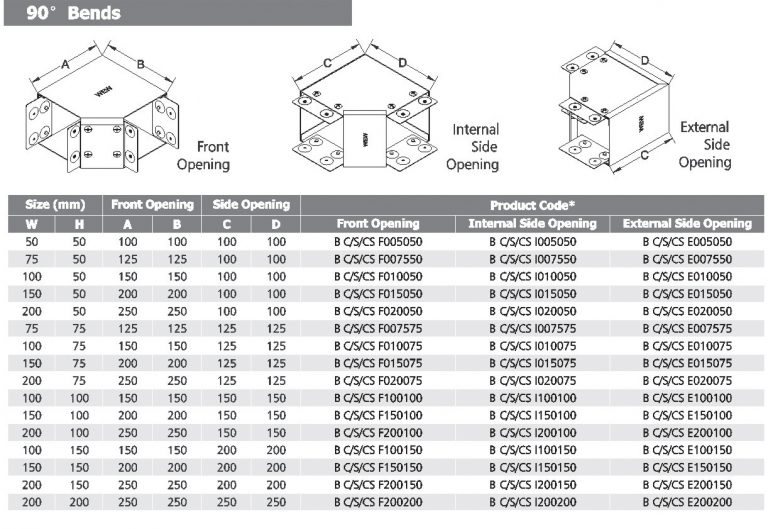

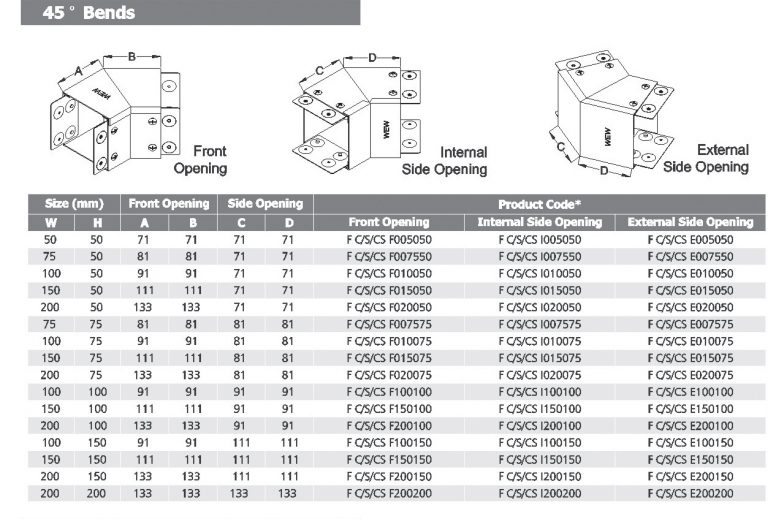

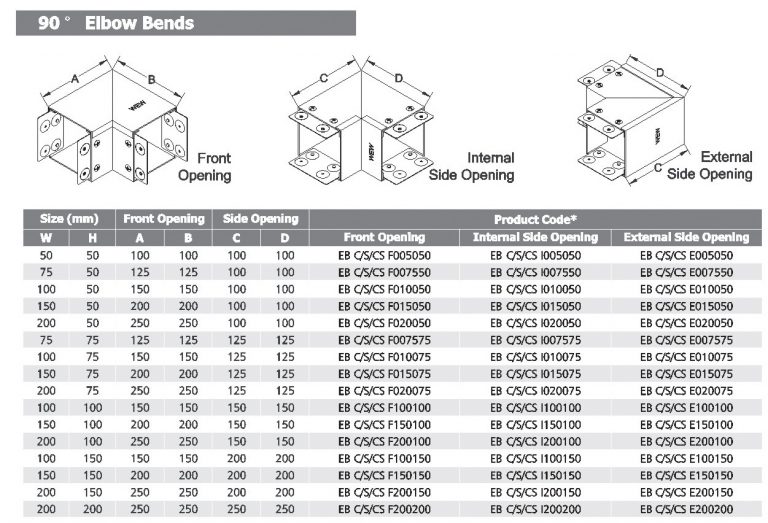

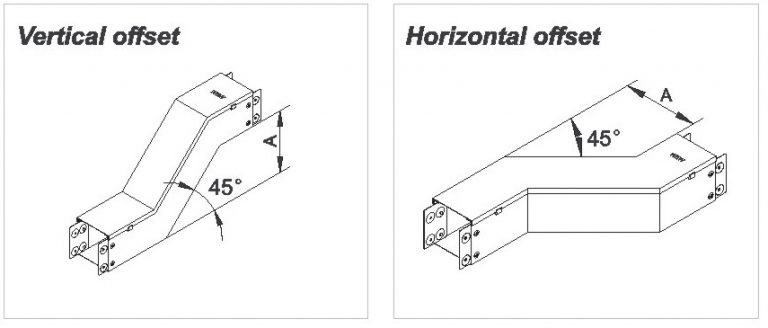

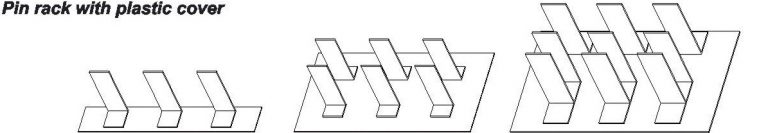

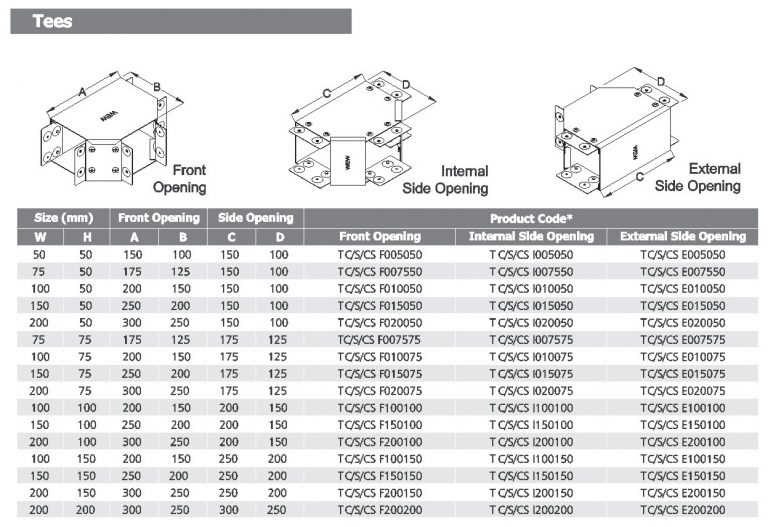

ACCESSORIES
RETAIL SPECIFICATIONS
DOWNLOADS
Product Details.pdf
Relative Information 1.pdf
Useful Information 1.pdf
Tech Certificate 1.pdf
Relative Information 2.pdf
Useful Information 2.pdf
Tech Certificate 2.pdf
Relative Information 3.pdf
REMARKS

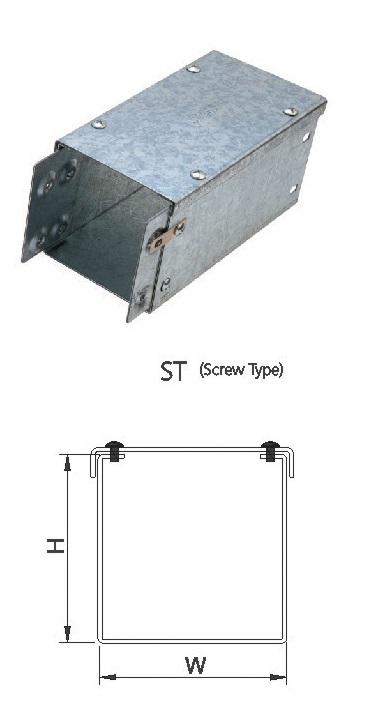

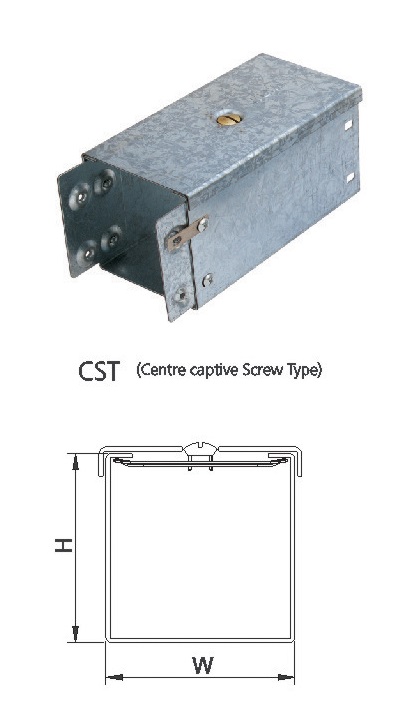

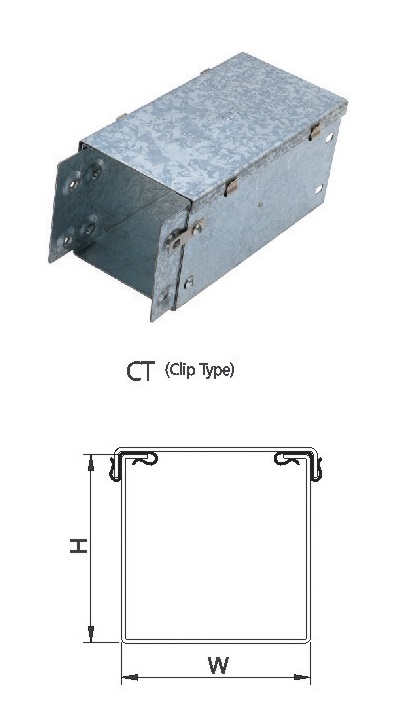

Covers are secured by either (ST), (CT) or (CST).

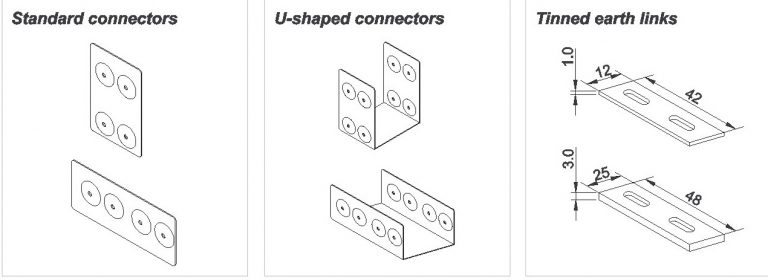

Each trunking supplied with cover, couples, copper earth link & relevant fixings.
Thickness of partitions & connector material is 1.0 mm for compartment trunking.
Standard length is 8FT/3M.
Non standard lengths thickness and finishes available to order
Product Code: C=Clip-on Type, S=Screw Type & CS = Centre Captive Screw Type.
